Lasers and Optoelectronics

Ceramic laser components developed and manufactured by our engineers offer measurable improvements over more traditional materials in terms of lifespan, efficiency and performance. By using the expansive knowledge and expertise of our engineers, Technical Ceramics produces ceramic laser components that provide serious advantages over more traditional materials for industrial, medical and scientific lasers.

Get a quote

Laser Products

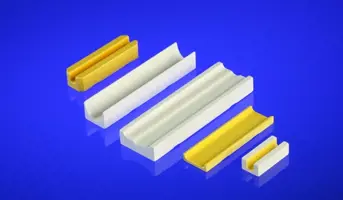

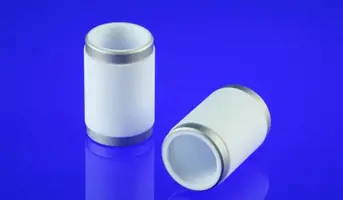

Our high reflectance ceramic cavities, used within laser reflectors, versus more traditional metal and polymeric parts, provide extended life-time with reduced maintenance downtime, greater efficiency and reflectance as well as increased uniformity and thermal stability.

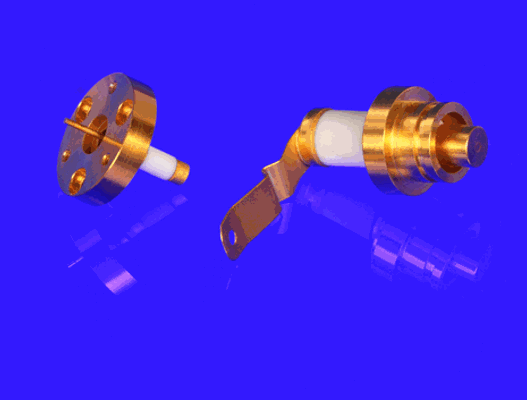

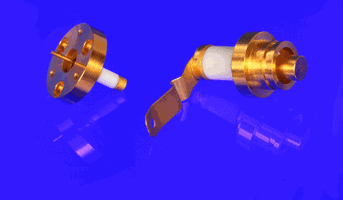

Feedthroughs used in gas lasers feature brazed-joint design combined with the chemical stability which allows CO₂ laser manufacturers to use their systems more intensively, reduce the downtime and operating cost.

We manufacture a wide range of products for laser applications designed to work together and simplify your supply chain, including:

Feedthroughs

Need more information? Start talking to us today

Laser Materials

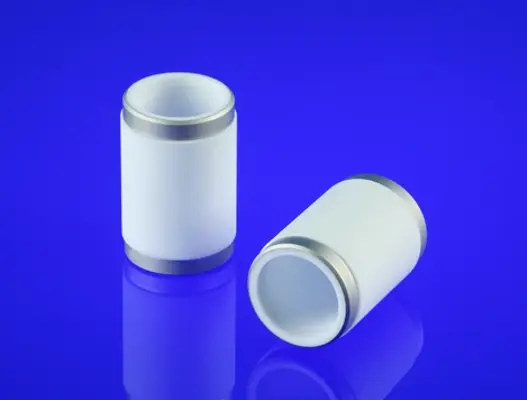

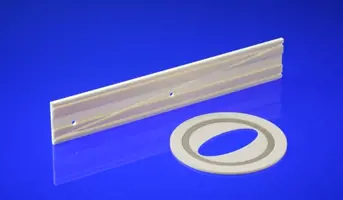

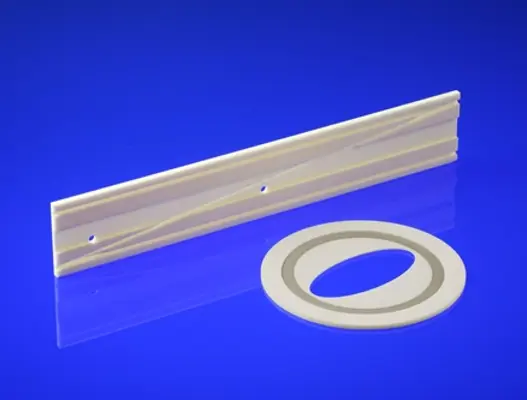

Our ceramic wave guides and tubes are available in 94%-99.99% alumina, aluminium nitride and MACOR^® and can be manufactured with high complexity in custom sizes and geometries.

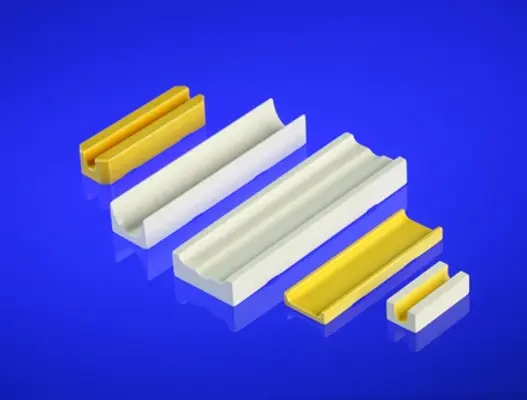

Our high reflectance Sintox AL laser reflectors are used for pumping within solid state lasers (100W to 500W) and intense pulse light (IPL) devices (530nm to 1000nm) specifically for use in applications such as cutting, welding, marking, eye surgery, skin rejuvenation, tattoos and hair removal.

Sintox™ FF high purity alumina
Sintox™ AL with solarisation resistance GSO and GSY glazes
94-99.99% alumina
Aluminium nitride
MACOR^® machinable glass-ceramic

Laser Applications

The ceramic laser components manufactured by us are utilised in a variety of different applications. Within industry they are used as cutting, welding and marking lasers; in medicine they are frequently used in surgical procedures and in health and beauty industry for a variety of cosmetic treatments such as hair and tattoo removal.

Industrial Laser Applications:

Industrial lasers (cutting, welding, marking)
Gas lasers (CO2 for marking)
Range finders

Medical / Aesthetic Laser Applications:

Excimer lasers
Surgical lasers
Aesthetic or cosmetic lasers
Intense pump lamp (IPL) devices
Diode-pumped solid-state (DPSS) lasers for medical and scientific purposes

Ceramic Optoelectronic Applications

Morgan Technical Ceramics designs and manufactures high‑precision ceramic components for optoelectronic applications that demand excellent electrical insulation, thermal stability and chemical resistance. These advanced ceramic materials offer consistent dielectric properties, resistance to oxidation and corrosion, low electrical loss and the ability to operate reliably in harsh or controlled environments, making them well suited to demanding optoelectronic assemblies and devices.

Typical ceramic optoelectronic applications include:

High‑purity ceramic housings
Ceramic components in LED lighting
Ceramic‑to‑metal hermetically sealed assemblies
Components for imaging, sensing and measurement equipment

Laser Ceramics Questions

Why are ceramics used as laser materials?

Ceramics are specified because of ceramics’ high reflectance at critical wavelengths, e.g. 98%+ reflectance at 1064nm, coupled with exceptional and uniform thermal stability, low electrical loss, resistance to solarisation and oxidation, corrosion resistance to gases and fluids (such as fluorine compounds, CO₂, cooling fluids and cleaning fluids), cleanliness, and hardness. The high reflectance is obtained by a combination of the material properties, microstructure and controlled porosity of the material.

What are the advantages of ceramic laser components over other materials?

While other materials (such as polymers, polished aluminium, and gold or silver-plated fused silica or glass) can demonstrate the required reflectance at a desired wavelength, they often lack sufficient additional attributes which detrimentally impacts long-term laser quality (e.g. thermal stability, corrosion resistance, cleanliness, durability during maintenance). Furthermore, the reflectors made out of alumina ceramic, e.g. Sintox™ AL , have high reflectance over a wide range of wavelengths, e.g. 98% reflectance across the wavelength range 500 – 2000nm.

How are ceramics used in laser components?

Ceramics components reflect light to concentrate the light energy to amplify an intense, coherent, collimated beam of light at a specific nominal wavelength, a “laser beam.” Because of the high-energy needs of some of these systems, ceramics are often used as electrical feedthroughs for their high electrical resistivities.

What wavelengths are Morgan's Sintox AL ceramic reflectors optimised for?

Sintox AL alumina reflectors provide greater than 98% reflectance across the wavelength range of approximately 500 to 2000nm. They are particularly suited to solid-state Nd:YAG lasers (1064nm) and intense pulsed light (IPL) devices operating from 530 to 1000nm. Their reflectance is highly uniform across the cavity surface, improving beam quality and consistency.

Why are ceramic waveguides preferred over metallic waveguides in CO2 lasers?

Alumina and aluminium nitride ceramic waveguides offer a combination of properties that metal waveguides cannot match: high electrical resistivity to confine the discharge, excellent thermal stability under continuous operation, resistance to the corrosive gas mixtures used in CO2 lasers, and hardness that withstands mechanical cleaning during maintenance. These properties combine to give substantially longer service intervals.

Can Morgan manufacture custom-sized laser tubes and reflectors?

Yes. We produce laser tubes and reflectors in a wide range of standard and custom sizes. Our extrusion and precision machining capabilities, combined with our in-house glazing and surface finishing processes, allow us to tailor products to specific laser system designs. We work with laser OEMs at the design stage to optimise component geometry for maximum performance.
